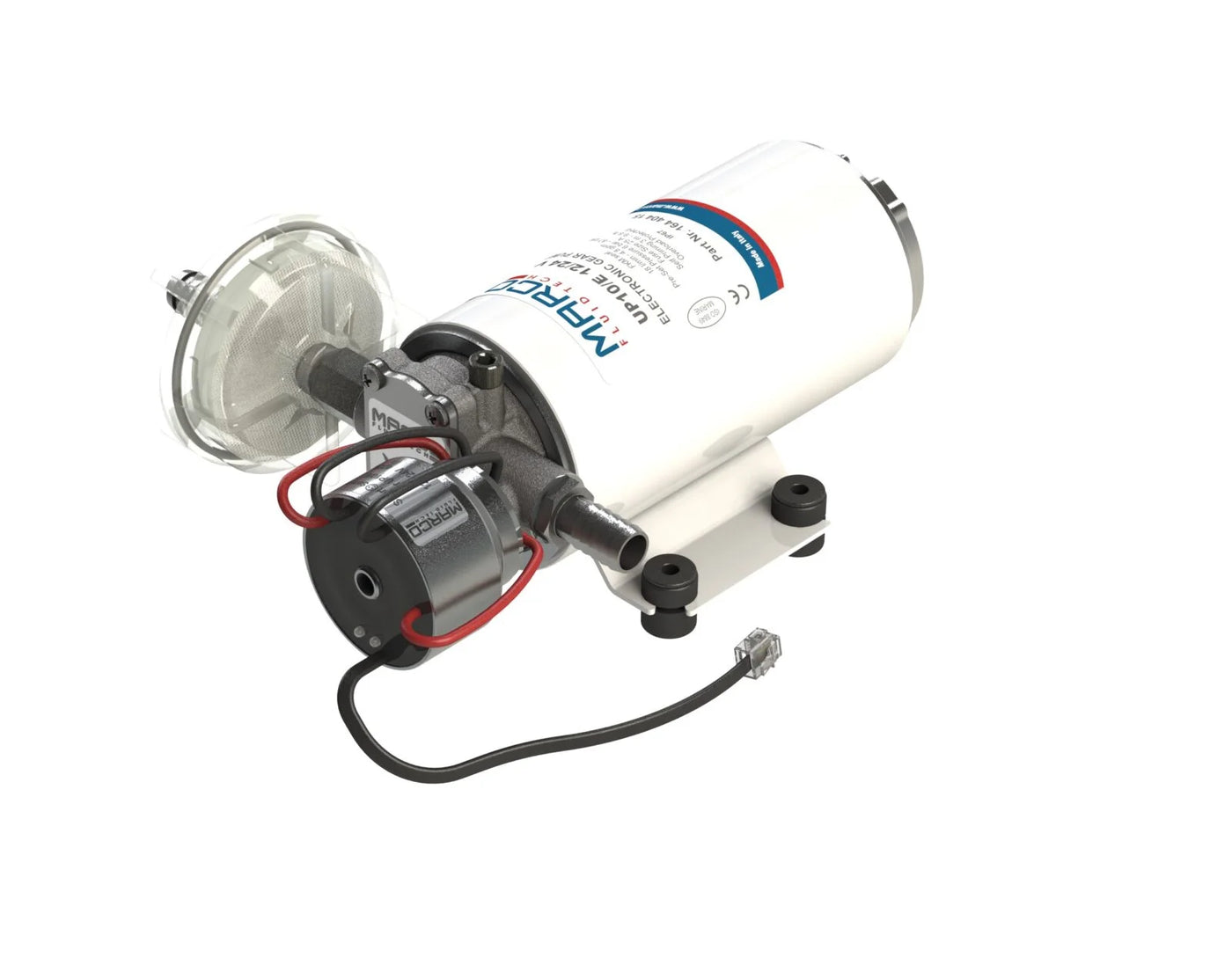

Marco UP10/E Gear Water Pump with Electronic Control – 26L/min

The Marco UP10/E Gear Pump is a high-performance self-priming water pressure pump designed for reliable fluid transfer across marine, automotive, agricultural, and industrial applications. Featuring an advanced integrated electronic control system, this pump automatically manages pressure and motor speed to deliver smooth, efficient, and dependable operation.

Built using durable corrosion-resistant materials, the UP10/E combines strong flow performance with intelligent pump protection and low-noise operation.

Key Features

• Self-priming gear water pump
• Integrated electronic control system
• Dual voltage compatibility – 12V and 24V
• Maximum flow rate up to 26 litres per minute
• Maximum pressure up to 2.5 Bar
• Nickel-plated brass pump body
• Stainless steel shaft
• PTFE and helicoidal PEEK gears
• 1/2” BSP female ports with hose tails
• 3/8” BSP female port connections
• Maximum fluid temperature: 40°C
• Maximum suction lift: 3 metres

High-Performance Water Pressure System

Designed for demanding applications, the Marco UP10/E delivers consistent water pressure and reliable flow while automatically adjusting motor speed based on system demand.

Its self-priming operation allows fast installation and dependable startup without the need for manual priming.

Advanced Electronic Control

The integrated electronic management system continuously monitors pressure, voltage, and current to optimise pump performance and efficiency.

The motor gradually ramps up to the required speed, helping reduce:

• Noise levels
• Current draw
• Mechanical wear
• System stress

The intelligent system also removes the need for a separate accumulator tank, simplifying installation and maintenance.

Durable Corrosion-Resistant Construction

Manufactured with a nickel-plated brass body and stainless steel shaft, the pump is designed for excellent resistance to corrosion, chemicals, and long-term wear.

The advanced PTFE and helicoidal PEEK gear system helps maintain:

• Smooth constant pressure
• Low operating noise
• Improved durability
• Enhanced chemical resistance

Integrated Safety & Diagnostics

Built-in protection systems help safeguard the pump against overloads and short circuits while improving overall reliability.

The electronic monitoring system includes:

• Blue LED warning indicators
• Empty tank alerts
• Automatic motor restart attempts in the event of stalling

These features help minimise downtime while improving operational safety.

Versatile Connection Options

The pump is supplied with multiple port options including:

• 1/2” BSP female ports with hose tails
• 3/8” BSP female connections
• Two 13mm brass hose barbs

This allows easy integration into a wide range of water systems and installations.

Ideal Applications

• Marine water systems
• Agricultural applications
• Vehicle and automotive systems
• Industrial fluid transfer
• Pressure boosting systems
• Workshop and utility installations

Designed for dependable long-term performance in demanding environments.
