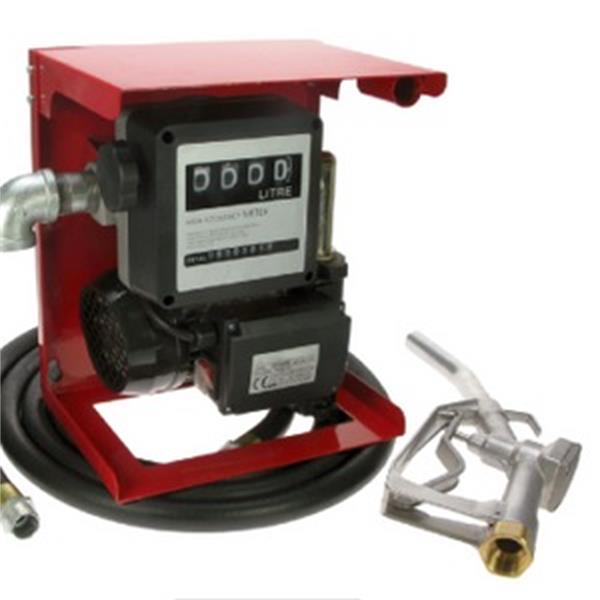

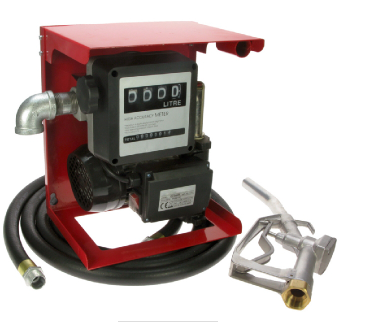

If you need an easy and convenient way to fill and maintain your liquid fuel tanks, this electric fuel pump kit is perfect for you.
It includes a powerful liquid fuel pump and a flowmeter, which is easy to install and connect.
Manufactured with corrosion treated cast iron pump heads, sintered steel rotors, acetalic vanes, and fluoroelastomer seals, this liquid fuel pump kit delivers 60 litres per minute at a maximum pressure of 6 bar.
This Electric Fuel Pump can be wall or pedestal mounted and comes in a rugged steel housing.
The mechanical counter with twin display (1x accumulative, 1x reset) makes monitoring your fuel flow easy.
The pump can handle temperatures ranging between -20°C to +55°C without affecting the long term reliability.

Specifications

• Suction lift: 4m primed (c/w NRV)
• Dry prime: 2.5m self priming
• Noise level: < 70 dB(A)
• Fluid viscosity: 2~5.35 cSt
• Motor: 220V single phase 50Hz ~ 0.37 KW 2900 RPM (2.4 A)
• Flow meter material: aluminium
• Range: 20 ~ 120 litre/min
• Accuracy: ±1%
• Filling nozzle: semi automatic nozzle
• Range: 80 litre/min (max)
• Spout: 22.0mm external diameter fitting: 1in BSP(F) stainless swivel
• Dispensing hose: PVC/NBR 25mm ID
• Length: 4.0m
