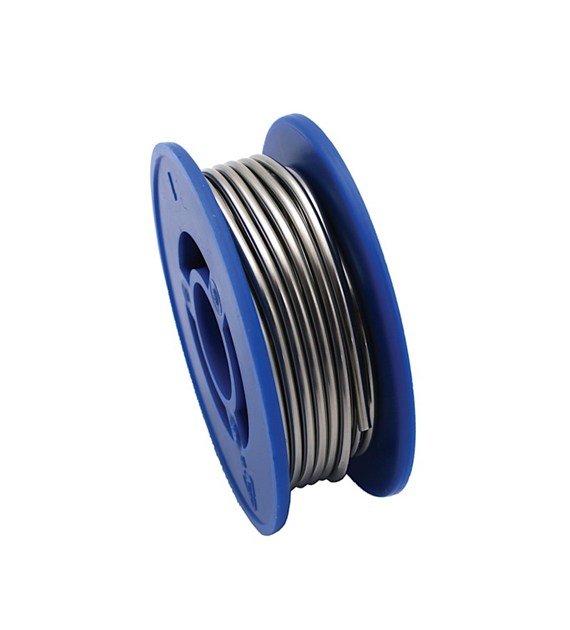

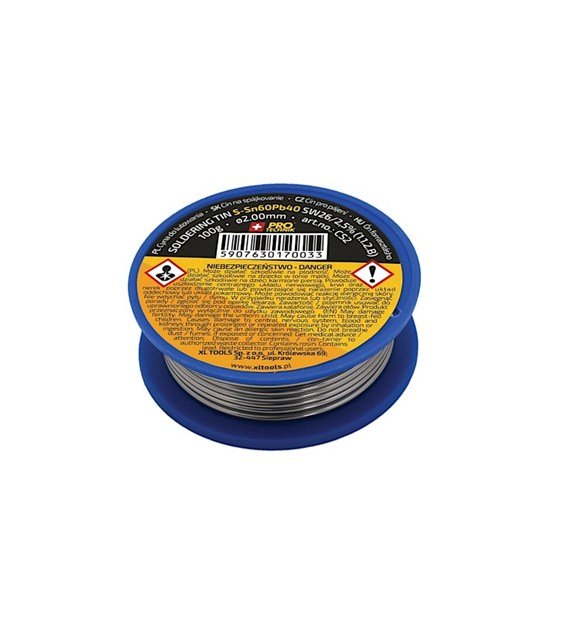

Soldering Wire with Flux 1.5mm x 100g

• 1.5mm Flux-Cored Soft Solder Wire
• Sn60Pb40 Tin-Lead Alloy Composition
• SW26 Internal Flux Core for Improved Wetting
• Helps Produce Smooth & Consistent Solder Joints
• Melting Temperature Range of 183–190°C
• Suitable for Medium-Sized Wires, Connectors & Solder Pads
• Controlled Material Feed for Accurate Solder Application
• Supplied on a Practical Spool for Smooth Unwinding
• Flux Core Reduces the Need for Separate Flux in Many Applications
• Suitable for Copper, Brass, Tin & Tin-Plated Surfaces
• Compatible with Most Soft-Soldering Irons & Stations
• Convenient 100g Spool for Workshop, Service & Hobby Use

• Product Type: Flux-Cored Soft Solder Wire
• Alloy Composition: Sn60Pb40
• Tin Content: 60%
• Lead Content: 40%
• Flux Type: SW26
• Wire Diameter: 1.5mm
• Melting Temperature Range: 183–190°C
• Net Weight: 100g
• Packaging: Wire Spool
• Product Weight: 0.1kg
• EAN: 5907630199263

• Soldering Electrical Wires & Terminals
• Tinning Wire Ends & Electrical Connections
• Soldering Connectors, Plugs & Cable Harnesses
• Through-Hole Electronic Component Assembly
• Printed Circuit Board Repair & Modification
• Consumer Electronics & Household Appliance Repairs
• Automotive Electrical Repairs Where Leaded Solder Is Permitted
• Prototype Assembly & Workshop Maintenance
• Model Making & Small Tin-Plated Metal Components

• Flux Core Supports Fast & Consistent Solder Flow
• Helps Improve Wetting of Wires, Terminals & Solder Pads
• Reduces the Need to Apply Separate Flux in Typical Applications
• 1.5mm Diameter Provides Controlled Material Delivery
• Suitable for Medium-Sized Connections & General Repair Work
• Predictable Melting Range Helps Reduce Excessive Heating Time
• Spool Design Allows Smooth & Convenient Wire Feeding
• 100g Package Is Easy to Store, Carry & Use
• Suitable for Both Professional Service Work & Hobby Applications

1. Work in a clean, well-ventilated area.
2. Ensure the surfaces to be soldered are clean and free from grease, oxidation and dirt.
3. Select a soldering iron tip suitable for the size of the connection.
4. Heat the soldering iron to an appropriate temperature for Sn60Pb40 soft solder.
5. Clean and lightly tin the soldering tip before beginning work.
6. Place the heated tip against both components being joined.
7. Feed the solder wire into the heated joint rather than directly onto the soldering tip.
8. Allow sufficient solder to flow evenly around the connection.
9. Remove the solder wire, followed by the soldering iron.
10. Keep the connection still until the solder has fully solidified.
11. Inspect the finished joint for an even surface, complete coverage and secure connection.
12. Remove flux residue where required using a suitable cleaning product.

• Contains Lead
• Use Only Where Leaded Solder Is Permitted
• Do Not Use in Drinking-Water or Food-Contact Systems
• Do Not Use in Applications Requiring Lead-Free or RoHS-Compliant Solder
• Always Work in a Well-Ventilated Area
• Avoid Inhaling Soldering Fumes
• Wear Suitable Eye Protection
• Avoid Direct Contact with Heated Solder, Tools & Components
• Do Not Eat, Drink or Smoke While Using the Product
• Wash Hands Thoroughly After Handling
• Keep the Soldering Iron in a Suitable Stand When Not in Use
• Keep Away from Children
• Store the Spool in a Clean, Cool & Dry Location
• Dispose of Lead-Containing Waste in Accordance with Local Regulations
