Toptul Electrician's Scissors Heavy Duty Angled 204mm

QSBBA0620 | 205mm Heavy-Duty Angled Electrician Scissors
TOPTUL

The QSBBA0620 Heavy-Duty Multi-Purpose Angled Electrician Scissors are designed for cutting, stripping and crimping tasks in electrical installation, maintenance and workshop applications. Their distinctive angled-head design improves access in narrow or awkward working areas while providing better hand clearance and control.
The premium blades are manufactured from JIS SUS420J2 stainless steel, with induction-hardened and precision-ground cutting edges for dependable sharpness and durability. A micro-serrated edge helps grip cable, insulation and other materials during cutting, reducing slippage and supporting a clean, controlled cut.
A large cable-cutting notch allows the tool to cut suitable soft cable up to 100mm² / 3/0 AWG, while an additional small wire notch is provided for cutting soft metal wire up to 2.5mm². The scissors can also cut compatible aluminium and copper wire up to Ø3.5mm.
Built-in stripping positions cover conductors from 0.3mm² to 6.0mm² / 24–10 AWG, while the integrated crimping section supports 2.5mm² / 14 AWG and 6.0mm² / 10 AWG cable terminals. A responsive spring-loaded mechanism provides smooth opening after each cut, and the safety lock keeps the tool securely closed when not in use.
Supplied with a protective plastic sheath and belt clip, the QSBBA0620 is a practical multi-function tool for electricians, installers, maintenance technicians and workshop professionals.

Features

• 205mm heavy-duty angled electrician scissors
• Premium JIS SUS420J2 stainless steel blades
• Induction-hardened cutting edges
• Precision-ground blade geometry
• Unique angled-head design for improved access

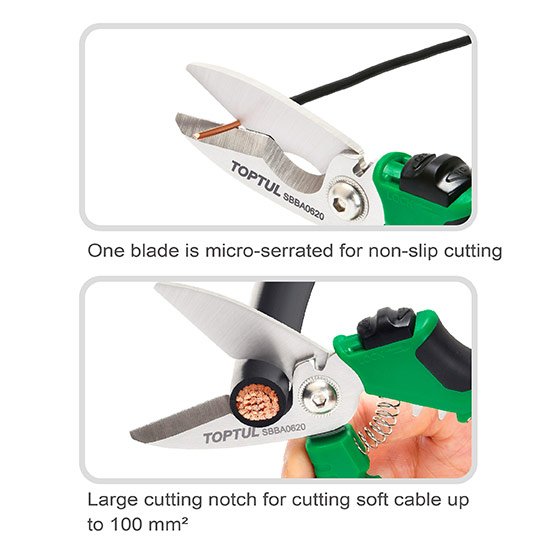

• Micro-serrated edge helps prevent material slipping
• 55mm blade length
• Cuts suitable soft cable up to 100mm² / 3/0 AWG
• Large cable-cutting notch for larger conductors
• Cuts aluminium and copper wire up to Ø3.5mm

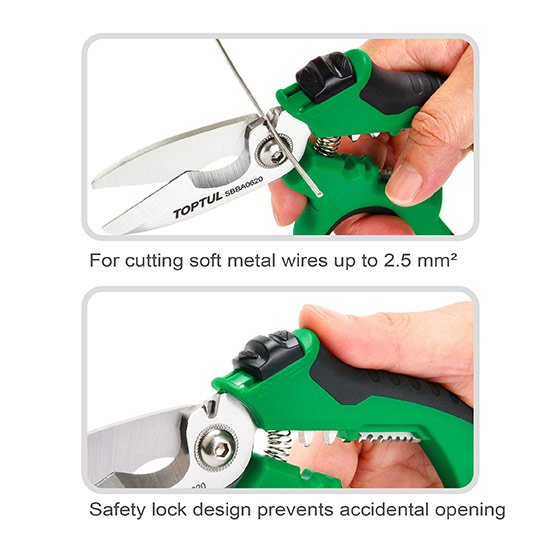

• Additional wire notch for soft metal wire up to 2.5mm²

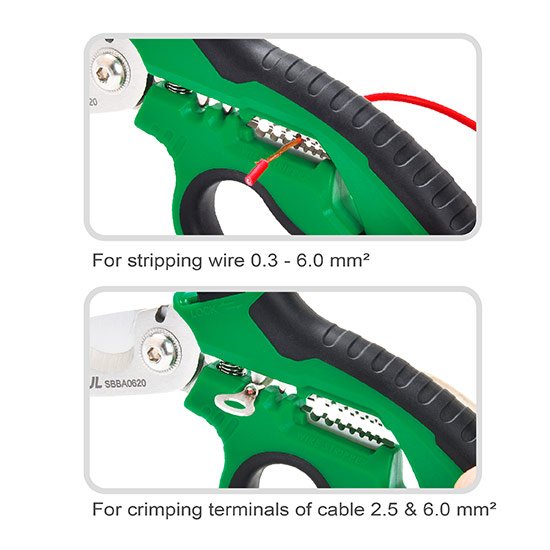

• Built-in wire stripping positions from 0.3–6.0mm²
• Equivalent stripping range from 24–10 AWG
• Integrated terminal crimper
• Crimping capacities of 2.5mm² and 6.0mm²
• Equivalent crimping capacities of 14 AWG and 10 AWG
• Spring-loaded cutting action
• Integrated safety lock
• Protective plastic sheath with belt clip
• Suitable for professional electrical installation and servicing

Typical Applications

• Cutting soft electrical cable
• Cutting cable insulation and sleeving
• Cutting electrical tape
• Cutting compatible copper and aluminium wire
• Cutting soft metal wire
• Stripping insulation from electrical conductors
• Crimping compatible cable terminals
• Electrical installation and maintenance
• Control panel and switchgear work
• Automotive electrical servicing
• Telecommunications and data cabling work
• Workshop and field-service applications
• Working in narrow or restricted-access areas

Benefits

• Angled-head geometry improves access in confined spaces
• Spring-loaded action supports faster repetitive cutting
• Micro-serrated blade helps hold materials securely
• Large cable notch supports heavier soft cable applications
• Wide stripping range covers common electrical conductor sizes
• Integrated crimper reduces the need for an additional tool
• Stainless steel construction supports corrosion resistance
• Safety lock keeps blades closed during storage
• Protective sheath reduces accidental blade contact
• Belt clip keeps the tool accessible while working
• One compact tool combines cutting, stripping and crimping functions

Technical Information

• Product Code: QSBBA0620
• Product Name: 205mm Heavy-Duty Multi-Purpose Angled Electrician Scissors
• Brand: TOPTUL
• Product Type: Angled Electrician Scissors / Multi-Purpose Cable Tool
• Overall Length: 205mm
• Blade Length: 55mm
• Blade Material: JIS SUS420J2 Stainless Steel
• Blade Treatment: Induction Hardened & Precision Ground
• Blade Edge: Micro-Serrated
• Maximum Soft Cable Capacity: 100mm² / 3/0 AWG
• Maximum Copper / Aluminium Wire Diameter: Ø3.5mm
• Additional Wire Notch Capacity: 2.5mm² Soft Metal Wire
• Crimping Capacities: 2.5 / 6.0mm²
• Equivalent Crimping Sizes: 14 / 10 AWG
• Stripping Capacities: 0.3 / 0.5 / 1.0 / 1.5 / 2.5 / 4.0 / 6.0mm²
• Equivalent Stripping Sizes: 24 / 20 / 18 / 16 / 14 / 12 / 10 AWG
• Opening Mechanism: Spring Loaded
• Safety Lock: Yes

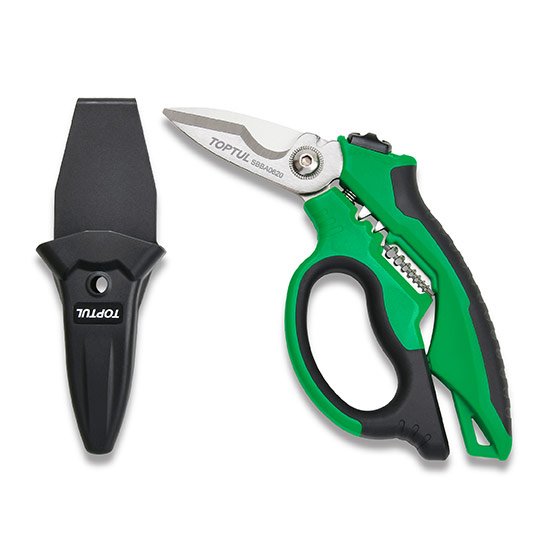

• Storage: Plastic Protective Sheath with Belt Clip
• Box Quantity: 6pcs
• Carton Quantity: 36pcs
• Package Contents: 1 x Angled Electrician Scissors and 1 x Protective Sheath with Belt Clip

Instructions for Use

1. Inspect the scissors before use and do not use them if the blades, handles, spring or locking mechanism are damaged.
2. Select the appropriate cutting, stripping or crimping section for the task.
3. For larger soft cable, place the cable fully into the large cutting notch before closing the handles.
4. For smaller soft metal wire, use the dedicated small wire notch where appropriate.
5. Use the straight blade section for insulation materials, electrical tape and suitable lighter cutting tasks.
6. For stripping, select the correct conductor size and remove only enough insulation to expose the required conductor length.
7. Avoid cutting into or nicking the conductor strands.
8. For crimping, place the compatible terminal correctly in the crimping section and apply firm, even pressure.
9. Allow the spring-loaded mechanism to reopen the handles naturally after each operation.
10. Engage the safety lock when the scissors are not in use.
11. Do not exceed the stated cutting, stripping or crimping capacities.
12. Do not use on live electrical circuits unless the tool is specifically rated and approved for live electrical work.
13. Clean the blades after use and apply light lubrication to the pivot where required.
14. Return the scissors to the protective sheath before carrying or storing them.
