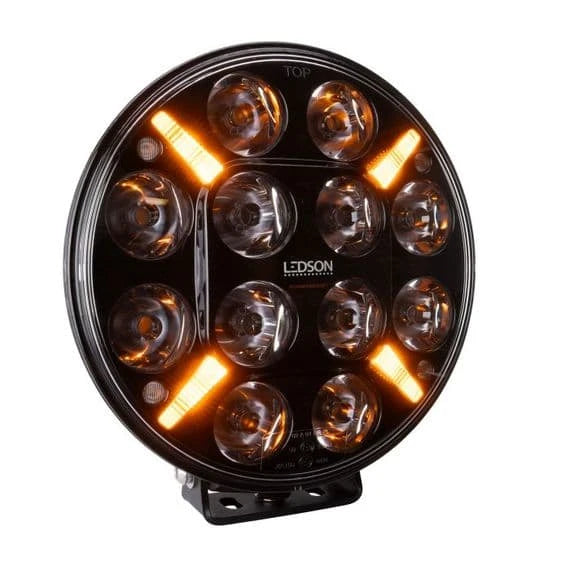

LEDSON Pollux 9+ Strobe Gen3 Drive Lamp

LEDSON Pollux9+ Generation 3: More powerful and smarter than ever

With the Pollux9+ Generation 3, you enhance your driving experience with the latest technology from Ledson in an auxiliary light filled with features. With an impressive 120W power output and the groundbreaking feature of pulse-controlled Powerboost, this third generation of Pollux9+ offers increased flexibility and improved brightness when needed most.

Pollux9+ Generation 3 provides outstanding brightness and range to ensure superior visibility and safety in all driving conditions. With its robust design, the Pollux9+ Generation 3 is engineered to withstand tough conditions and is ready to deliver superior performance for years to come.

Pulse-Controlled Powerboost - It Doesn't Get Smoother Than This

Pollux9+ Gen3 Strobe comes equipped with Ledson Powerboost—an extra power mode for those moments when you need (or simply want) maximum brightness. A simple flick of the high beam lever activates this impressive brightness, allowing you to easily adjust the auxiliary light's output according to your needs. With the new generation of Powerboost from Ledson, you can seamlessly switch modes using the high beam flash in just a few steps. Note: Your auxiliary light is delivered in E-approved mode. Please follow the instructions to activate Powerboost mode.

Switch to Powerboost mode with "10+10+5"

This is done most easily with the 'light switch' when the light switch is in off or parking light mode.

1. Turn on the auxiliary light for about 10 seconds (between 7-13 seconds)
2. Flash the auxiliary light rapidly 10 times (within 10 seconds)
3. On the eleventh flash, hold the light on and after about 5 seconds the Powerboost function will automatically switch on or off.

TIR reflectors

TIR stands for Total Internal Reflection and means that all light is effectively reflected and directed before it is emitted from the reflector. Spill light (the light that is not directed but disappears "unfocused" from the lighting without actually serving any purpose) is minimized. A traditional reflector directs and focuses most of the light but far from all; Pollux 9+ has these TIR reflectors for maximum light.

Choose your light pattern: Driving or Spot Beam

Choose between Driving Beam for a balanced light pattern that complements your vehicle's headlights, or Spot Beam for a powerful and focused beam of light that effectively illuminates the road ahead of you.

Strobe Lights

Choose from five different strobe light patterns and synchronize them between your Pollux9+ Gen3 auxiliary lights. Either these auxiliary lights can be connected to synchronize strobe lights across all connected units or they can be connected in two groups to achieve alternating strobe light patterns.

Mounting on the Vehicle

• Can be mounted easily and neatly using a license plate holder or tube mount.

Features:

• E-marked (ref. 37.5 for Driving Beam, ref. 50 for Spot Beam), ECE R112 / R10 / R7 (white position light)
• Equipped with pulse-controlled Powerboost
• EMC secured (does not interfere with radio signals)
• Five different approved strobe patterns, one ECE R65-approved
• With position light (4 pcs LED) yellow-orange or xenon white (connect the color you prefer)
• "Driving beam" light pattern (33491238) or "Spot Beam" light pattern (33491239)
• Driving Beam Range: 407 m (1 lux), Powerboost: 659 m (1 lux)
• Spot Beam Range: 493 m (1 lux), Powerboost: 805 m (1 lux)
• 4200 lumens (theoretical), 3500 lumens (actual)
• Powerboost 13000 lumens (theoretical), 10500 lumens (actual)
• Color temperature 5000K (Neutral White)
• TIR optical system (Total Inner Reflection)
• Pressure equalization membrane
• 36-month warranty

Technical Data:

120W (12 x 10W LED) + 4 x 3W LED for strobe lights
Nominal power 92.4 W
IP68 & IP69K (water/dustproof)
DT connector (6-pin) included
Electronic heat management
Voltage 9-36 V Load 3.2 A @ 12 V and 1.6 A @ 24 V Load
Powerboost 9.8 A @ 12 V and 4.6 A @ 24 V

Dimensions & Weight:

• Width: 218 mm
• Height: 234.5 mm (including bracket)
• Depth: 68.5 mm
• Weight: 1.9 kg
• Cable length: 650 mm
